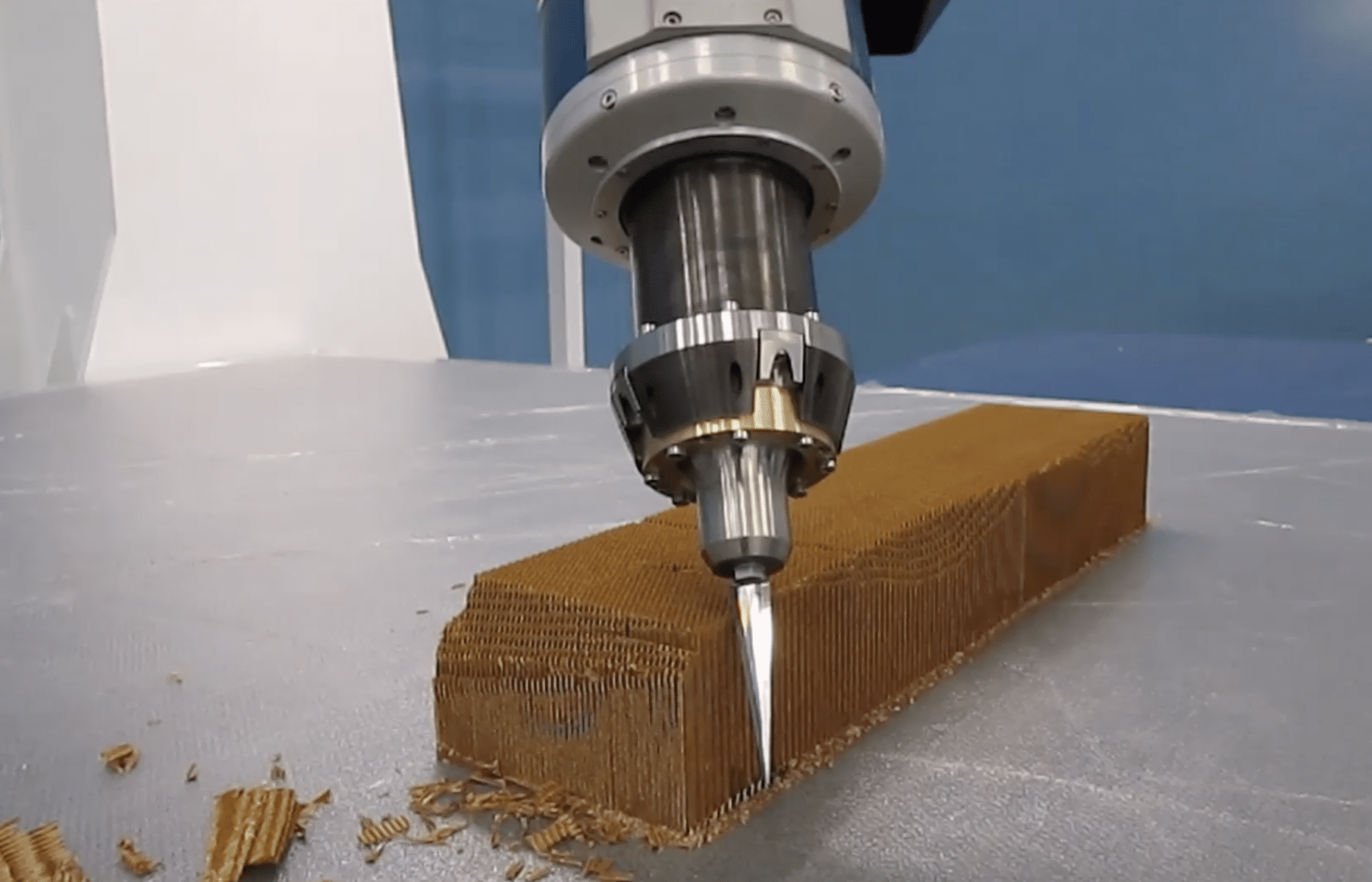

Ultrasonic cutting
Honeycomb materials and structures are increasingly used in the aeronautics industry. Machining these materials using traditional methods is often complex, costly, and unsatisfactory in terms of quality and accuracy.
CRENO has developed a unique solution, qualified by aerospace, for these materials by combining the advantages of the ultrasonic cutting process and traditional milling machines.
The advantages of our ultrasonic cutting solutions:
Recognized expertise
- No dust
- Reduced cutting force
- Unrivalled quality due to the absence of deformed cells and lint
- Significantly reduced cycle time (up to ×3 faster)
- Increased ultrasonic tool life span
- Possibility to realize complex geometries
5-Axis Machine
Previous
Next
CRENO 5-axis cutting machines combine traditional milling and ultrasonic cutting quality in one machine.
It is therefore possible to machine composite skins, honeycomb materials, and bonded parts. This solution offers the opportunity to work on a wide range of materials and shapes, in particular when cutting small parts at high-speeds.
Numerically controlled robot cells
Previous
Next
A robot unit featuring numerous innovations
- Vertical machining of parts for better waste evacuation
- Preparation possible during cutting operations thanks to the external table and shuttle pallets device
- Pre-configured option combining traditional machining with ultrasonic cutting for specific materials such as aluminum honeycomb, resin, etc.
- Cartesian drive with state-of-the-art Siemens NC controller
- Perfectly optimized trajectories with control acting as a continuous 7th axis for the ultrasonic knife
- Automatic heads and tool changer
